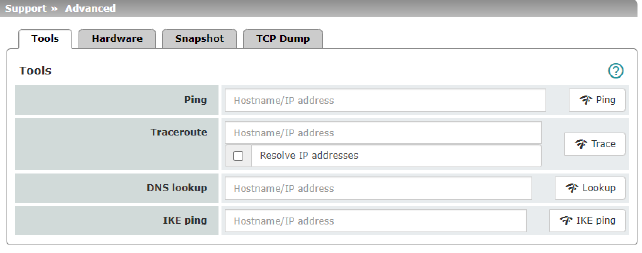

Ping

Aim: to check whether a peer can be reached via a network.

Procedure:

•Enter the IP address or host name of the peer in the Hostname/IP Address field. Then click on the Ping button.

A corresponding message is then displayed.

Traceroute

Aim: to determine which intermediate points or routers are located on the connection path to a peer.

Procedure:

•Enter the host name or IP address of the peer whose route is to be determined in the Hostname/IP Address field.

•If the points on the route are to be output with IP addresses instead of host names (if applicable), activate the Do not resolve IP addresses to hostnames check box (check mark).

•Then click on the Trace button.

A corresponding message is then displayed.

DNS lookup

Aim: to determine which host name belongs to a specific IP address or which IP ad­dress belongs to a specific host name.

Procedure:

•Enter the IP address or host name in the Hostname field.

•Click on the Lookup button.

The response, which is determined by the mGuard according to the DNS configura­tion, is then returned.

IKE ping

Aim: to determine whether the VPN software for a VPN gateway is able to establish a VPN connection, or whether a firewall prevents this, for example.

Procedure:

•Enter the name or IP address of the VPN gateway in the Hostname/IP Address field.

•Click on the IKE ping button.

•A corresponding message is then displayed.

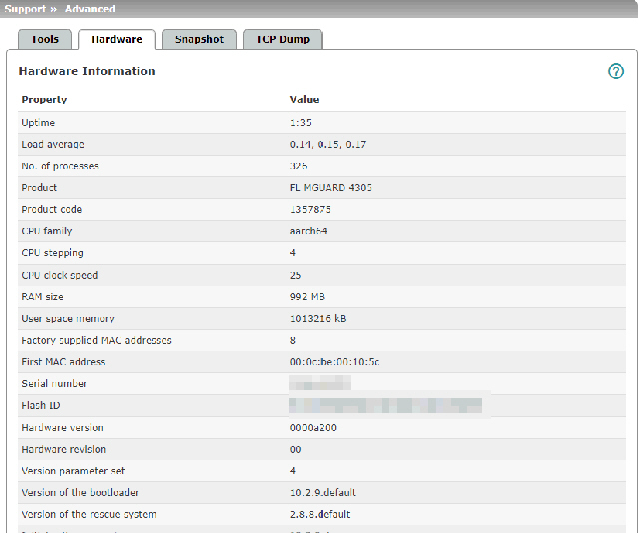

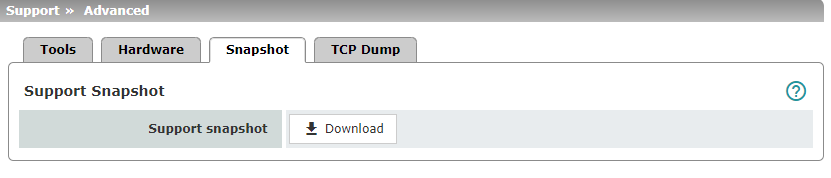

Support Snapshot

Support snapshot

Creates a compressed file (in tar.gz format) containing all current configuration settings that could be relevant for error diagnostics.

To create a Support snapshot or Support snapshot with persistent logs, proceed as follows:

•Click on the Download button.

•Save the file (under the name snapshot-YYYY.MM.DD-hh.mm.ss.tar.gz or snapshot-all-YYYY.MM.DD-hh.mm.ss.tar.gz).

Provide the file to the support team of your supplier, if re­quired.

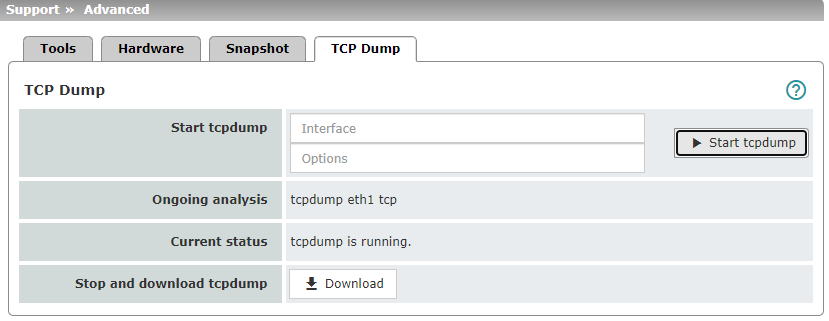

TCP Dump

A packet analysis (tcpdump) can be used to analyze the content of network packets that are sent or received via a selected network interface. Filter options are used to deter­mine which network packets are analyzed.

The result of the analysis is saved in a file (*.tar.gz), downloaded and deleted on the de­vice.

Start tcpdump

Interface

Only data packets that are sent or received via the selected network interface will be analyzed.

–WAN interface (XF1):

–eth0

–LAN interface (XF2-4 or 2-5):

–eth1 (network mode Router only)

–br0 (network mode Stealth only)

–swp0 (FL MGUARD 2105/4305 only)

–swp1 (FL MGUARD 2105/4305 only)

–swp2 (FL MGUARD 2105/4305 only)

–swp3 (FL MGUARD 2105 only)

–DMZ interface (XF5):

–dmz0 (FL MGUARD 4305 only)

Options

By specifying options, the packet analysis can be restricted to a selection of the elements listed below.

Options can be linked via the logical operators "and, or, not".

Example: tcp and net 192.168.1.0/24 and not port 443

Available options:

–tcp: TCP protocol

–udp: UDP protocol

–arp: ARP protocol

–icmp: ICMP protocol

–esp: ESP protocol

–host <ip>: IPv4 address

–port <1-65535>:Network port (port number or service name)

–net <nw_cidr>: Network (in CIDR format, e.g. 192.168.1.0/24)

–and, or, not: Logical operators

"start tcpdump" button

•Click on the "Start tcpdump" button to start an analysis.

Ongoing analysis

During a running analysis: shows for which interface and with which options tcpdump is being executed.

Current status

Shows the status of the analysis.

Stop and download tcpdump

"Download" button

•Click on the Download button,

–to stop a running analysis and download the data or

–to download data that has been saved on the device af­ter an automatically stopped analysis.

The recorded package contents are summarized in a file (*.tar.gz) and automatically downloaded from the device. The file is then deleted from the device.

The time at which the file was downloaded is specified in the file name as follows: <YYYY.MM.DD-hh.mm.ss>

Example: tcpdump-2024.06.10-09.47.54.tar.gz
