2mGuard basics

The mGuard protects IP data links by combining the following functions:

–Industrial security network router.

–Depending on the model with built-in 3- or 4-port switch and DMZ port.

–VPN router for secure data transmission via public networks (AES encryption, IPsec and OpenVPN protocol).

–Configurable firewall for protection against unauthorized access. The dynamic packet filter inspects data packets using the source and destination address and blocks unde­sired data traffic.

2.1New device platform FL MGUARD 2000/4000

The FL MGUARD 2000/4000 series devices are gradually replacing the established Guard devices of the RS2000/RS4000 and PCI(E)4000 series.

The new devices with proven mGuard Security Technology are equipped with fast Gigabit Ethernet and are operated with the mGuard 10.x firmware version.

The devices are compatible with their predecessor models, can import existing configura­tion profiles (atv files), and can be configured via CGI and GAI interfaces.

The mGuard device manager (starting with version mdm 1.16.0) can be used to manage mGuard devices with firmware versions up to 10.4.x installed (see user manual "UM EN MDM 1.16" – 111024_en_xx).

2.1.1Functions that are no longer supported

Certain functions of the old device platform are no longer supported on the new device plat­form.

Hardware

The new mGuard models of the FL MGUARD 2000/4000 series are offered without serial interface and without internal modem.

Firmware (functions)

Device functions that are not supported on the new device platform are listed in Table 2-1.

Table 2-1: Current functional differences

When transferring older device configurations to these new devices, care must therefore be taken to ensure that the functions described in Table 2-1 have been deactivated or reset to the default settings in the device configuration before export (see also Section 2.1.5).

2.1.2Newly added functions

Variables have been added to the new device platform that are not available on the old de­vice platform.

2.1.3Changed default settings

In a few cases, the default settings of existing variables on the old and new device platform differ.

2.1.4Changed variable values

In a few cases, variable values are no longer available on the new device platform and are replaced by other values.

2.1.5Migration of the device configuration

Migrating the configuration of older mGuard devices can be done via web-based manage­ment (WBM) or via SD card (ECS).

Requirements

If device functions of the device whose configuration is to be migrated are not available on the new device, the variables must be reset to the default settings before the configuration on the old device is exported (see Table 2-1).

The exact procedure for device migration is described in document 111259_en_xx (AH EN MGUARD MIGRATE 10), available at phoenixcontact.com/product/1357875.

2.2Basic properties

The mentioned properties are not guaranteed properties, as they are basically dependent on the respective device.

Network features

–Stealth (auto, static, multi), router (static, DHCP client)

–DMZ

–VLAN

–DHCP server/relay on the internal and external network interfaces

–DNS cache on the internal network interface

–Dynamic routing (OSPF)

–Administration via HTTPS and SSH

–LLDP

–MAU management

–SNMP

Firewall features

–Stateful packet inspection

–Anti-spoofing

–IP filter

–L2 filter (only in stealth mode)

–NAT with FTP, and IRC support (only in “Router” network mode)

–1:1 NAT (only in “Router” network mode)

–Port forwarding (not in “Stealth” network mode)

–Individual firewall rules for different users (user firewall)

–Individual rule sets as action (target) of firewall rules (apart from user firewall or VPN firewall)

–Protective device for PROFIsafe network cells (in accordance with IEC 61784-3-3).

VPN features (IPsec)

–Protocol: IPsec (tunnel and transport mode, XAuth/Mode Config)

–IPsec encryption with DES (56 bits), 3DES (168 bits), and AES (128, 192, 256 bits)

–Packet authentication: MD5, SHA-1, SHA-265, SHA-384, SHA-512

–Internet Key Exchange (IKE) with main and quick mode

–Authentication via:

–Pre-shared key (PSK)

–X.509v3 certificates with public key infrastructure (PKI) with certification authority (CA), optional certificate revocation list (CRL), and the option of filtering by subject

or

–Remote certificate, e.g., self-signed certificates

–Detection of changing peer IP addresses via DynDNS

–NAT traversal (NAT-T)

–Dead Peer Detection (DPD): detection of IPsec connection aborts

–IPsec/L2TP server: connection of IPsec/L2TP clients

–IPsec firewall and IPsec NAT

–Default route via VPN tunnel

–Data forwarding between VPNs (hub and spoke)

–Up to 250 active VPN tunnels (depending on the device)

VPN features (OpenVPN)

–OpenVPN client

–OpenVPN encryption with Blowfish, AES (128, 192, 256 bits)

–HMAC authentication: SHA-1, SHA-256, SHA-512

–Dead Peer Detection (DPD)

–Authentication via user identifier, password or X.509v3 certificate

–Detection of changing peer IP addresses via DynDNS

–OpenVPN firewall and 1:1 NAT

–Routes via VPN tunnels can be configured statically and learned dynamically

–Data forwarding between VPNs (hub and spoke)

–Up to 250 VPN tunnels

Additional features

–Remote Logging

–Administration using SNMP v1-v3 and mGuard device manager (FL MGUARD DM UNLIMITED)

–PKI support for HTTPS/SSH remote access

–Can act as an NTP and DNS server via the LAN interface

–Plug-n-Protect technology

–Compatible with mGuard Secure Cloud (mSC)

Support

In the event of problems with your mGuard, please contact your supplier.

2.3Typical application scenarios

This section describes various application scenarios for the mGuard.

–Stealth mode (Plug-n-Protect)

–Network router

–DMZ (Demilitarized Zone)

–VPN gateway

–WLAN via VPN tunnel

–Resolving network conflicts

2.3.1Stealth mode (Plug-n-Protect)

In stealth mode, the mGuard can be positioned between an individual computer and the rest of the network.

The settings (e.g., for firewall and VPN) can be made using a web browser under the URL https://1.1.1.1/.

No configuration modifications are required on the computer itself.

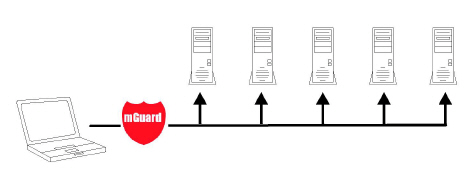

Figure 2-1: Stealth mode (Plug-n-Protect)

2.3.2Network router

When used as a network router, the mGuard can provide the Internet connection for sev­eral computers and protect the company network with its firewall.

For computers in the Intranet, the mGuard must be specified as the default gateway.

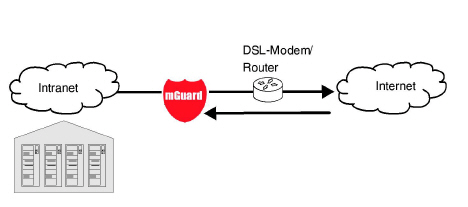

Figure 2-2: Network router

2.3.3DMZ

A DMZ (demilitarized zone) is a protected network that is located between two other net­works. For example, a company's website may be in the DMZ so that new pages can only be copied to the server from the Intranet via FTP. However, the pages can be read from the Internet via HTTP.

IP addresses within the DMZ can be public or private, and the mGuard, which is connected to the Internet, forwards the connections to private addresses within the DMZ by means of port forwarding.

A DMZ scenario can be established either between two mGuards (see Figure 2-3) or via a dedicated DMZ port of some mGuard devices, e. g. the FL MGUARD 4305.

The DMZ port is only supported in router mode and requires at least one IP address and a corresponding subnet mask. The DMZ does not support any VLANs.

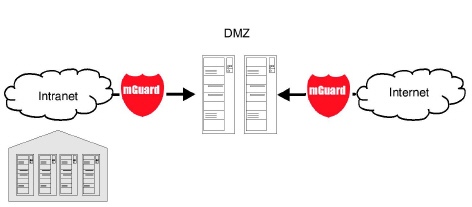

Figure 2-3: DMZ

2.3.4VPN gateway

The VPN gateway provides company employees with encrypted access to the company network from home or when traveling. The mGuard performs the role of the VPN gateway.

IPsec-capable VPN client software must be installed on the external computers or failing that, the computer is equipped with an mGuard.

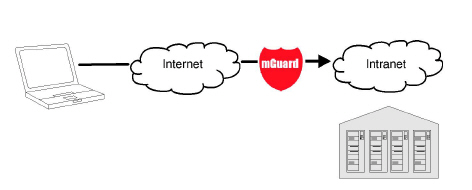

Figure 2-4VPN gateway

2.3.5WLAN via VPN

WLAN via VPN is used to connect two company buildings via a WLAN path protected using IPsec. The adjacent building should also be able to use the Internet connection of the main building.

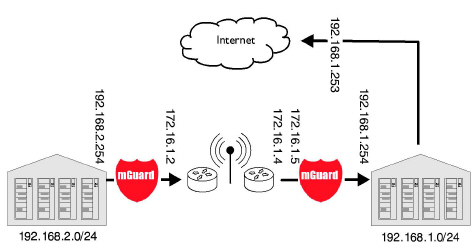

Figure 2-5: WLAN via VPN

In this example, the mGuards were set to router mode and a separate network with 172.16.1.x addresses was set up for the WLAN.

To provide the adjacent building with an Internet connection via the VPN, a default route is set up via the VPN:

Tunnel configuration in the adjacent building

In the main building, the corresponding counterpart is configured:

Tunnel configuration in the main building

The default route of an mGuard usually uses the WAN port. However, in this case the Inter­net can be accessed via the LAN port:

Default gateway in the main building:

2.3.6Resolving network conflicts

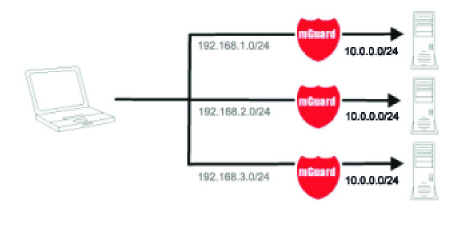

Resolving network conflicts

In the example, the networks on the right-hand side should be accessible to the network or computer on the left-hand side. However, for historical or technical reasons the networks on the right-hand side overlap.

The 1:1 NAT feature of the mGuard can be used to translate these networks to other net­works, thereby resolving the conflict.

(1:1 NAT can be used in normal routing, in IPsec tunnels, and in OpenVPN connections.)
